The single lumen needle range features a tri-faceted tip ensuring optimal sharpness and accuracy during placement. The needle is available as a stand alone unit and with a variety of tubing lengths to suit clinical preference.
Key Features
-Sharp, non-coring needle tip to minimise patient trauma
-Echo marked to the very tip for accurate placement under ultrasound guidance
-Colour coded tubing sleeves:
16g = Blue
17g = Red
18g = White
-Silicone bung for an easy and secure fit with test tubes
-Available with a luer lock connected at the bung for intermittent flushing of the follicle
View full product specifications:
https://www.coopersurgical.com/product/wallace-single-lumen-oocyte-recovery-systems/
| Wallace Single Lumen Needle | 16g | 17g | 18g |
| Inner catheter outer diameter | 1.52mm OD | 1.52mm OD | 16g |
| Needle ID | 1.24mm | 1mm | 0.95mmg |
| Needle OD | 1.7mm | 1.42mm | 1.25mm |
| Volume of needle not including hub | 0.435ml | 0.283ml | 0.255ml |
| Volume per cm length of needle | 0.012ml | 0.008ml | 0.007ml |
| Length of echogenic markings | 22mm | 22mm | 22mm |
| Aspiration tubing ID | 1.52mm | 1.31mm | 1.14mm |
| Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 750mm aspiration tubing | ONS1733-750 | Box of 10 |

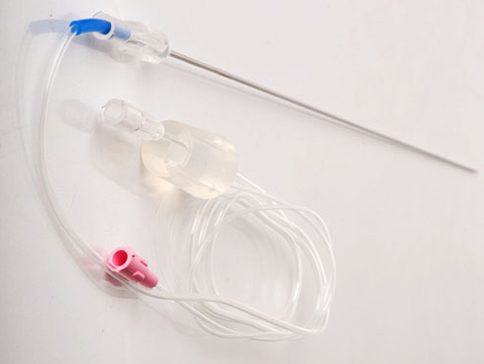

Cooper Surgical Wallace® Oocyte Recovery Set Single Lumen 17g x 33cm ONS1733-750
